In-ground sleeves in stock now. Order 90mm or 140mm sleeves today — matching removable bollards are on pre-order for the next shipment.

In-Ground Bollard Sleeves — 90mm & 140mm

The permanent steel housing that lets a removable bollard lock down and lift out — set in concrete once, used for the life of the site.

Request a Quote View Specs
90mm in-ground bollard sleeve set into concrete, ready for a removable bollard

In-ground sleeves

What a sleeve actually is

An in-ground bollard sleeve is a carbon steel housing that's cast or core-drilled into concrete on a permanent basis. It's not the bollard itself — it's the fixed ground socket that a removable bollard locks into and lifts out of.

Once installed, the sleeve stays in the ground indefinitely. A welded base plate anchors it below the surface, and a collar and cover plate sit flush with the finished concrete so the area is safe to walk or drive over whenever the bollard is removed.

In-ground sleeve with cover collar at surface level

Both sizes

Specifications & pricing

In stock now. Prices are per unit, ex GST and ex freight. Bulk and pallet pricing is better — tell us your quantity.

90mm in-ground bollard sleeve set into concrete, ready for a removable bollard In stock

In-Ground Sleeve 90mm

Suits 90mm removable bollard

$25 per unit, ex GST & freight

  • Internal diameter102mm
  • Wall thickness4mm
  • Depthapprox. 225mm
  • Base plate150 × 105 × 5mm
  • MaterialCarbon steel
  • Matching bollardRemovable bollard 90mm
Enquire
140mm in-ground bollard sleeve set into concrete, ready for a removable bollard In stock

In-Ground Sleeve 140mm

Suits 140mm removable bollard

$35 per unit, ex GST & freight

  • Internal diameter152mm
  • Wall thickness4mm
  • Depthapprox. 200mm
  • Base plate155 × 205 × 5mm
  • MaterialCarbon steel
  • Matching bollardRemovable bollard 140mm
Enquire

Prices are per unit, exclusive of GST and freight. Final pricing is confirmed on quote.

Construction

  • Carbon steel housing with a 4mm wall.
  • Welded base plate anchors the sleeve below the surface.
  • Flush collar keeps the ground trafficable when the bollard is out.
  • Matched to bollard diameter — order the sleeve that suits your bollard size.

Fits with

Sleeves are designed to pair one-for-one with our removable bollards. See the removable bollard range for the matching bollard specs, or our 90mm vs 140mm guide if you're still deciding on size.

Where they're used

Common applications

New driveway pours

Set the sleeve into the wet concrete during a new driveway or hardstand pour, ready for the bollard once it lands.

Retrofits into existing concrete

Core drill an existing slab or driveway to add removable access control without replacing the concrete.

Loading docks & warehouse bays

Fit sleeves at multiple points along a dock or access lane so bollards can be repositioned as operational needs change.

Spare or future positions

Order extra sleeves now for positions you plan to lock down later, so the concrete work is done in one pass.

Car park bay control

Install sleeves at reserved bays or restricted zones and manage access with bollards that lift out on demand.

Council & shared paths

Provide a lockable, removable access point on paths and laneways that still need occasional vehicle or maintenance access.

Sizing

Choosing 90mm or 140mm

The sleeve size is determined entirely by the bollard it needs to accept — there's no independent sizing decision to make beyond that.

  • 90mm sleeve — 102mm internal diameter, suits the 90mm removable bollard.
  • 140mm sleeve — 152mm internal diameter, suits the 140mm removable bollard.
  • Order to match — if you haven't decided on bollard size yet, choose that first using our 90mm vs 140mm guide, then order the matching sleeve.

Installation

How they go in — short version

We supply only, but here's the outline so you can scope the job. Full steps are in our installation guide, and detailed guidance is supplied with every order.

  1. New concrete

    Set the sleeve into the wet pour with the collar flush to the finished surface, with a gravel layer beneath for drainage. Let the slab cure fully before first use.

  2. Existing concrete

    Core drill to suit the sleeve — around 130mm for the 90mm sleeve, 220–225mm for the 140mm. Seat the sleeve, backfill with non-shrink grout or concrete, and trowel flush.

Always locate underground services before core drilling. Installation is the responsibility of the purchaser or their contractor — SafeWise supplies product only.

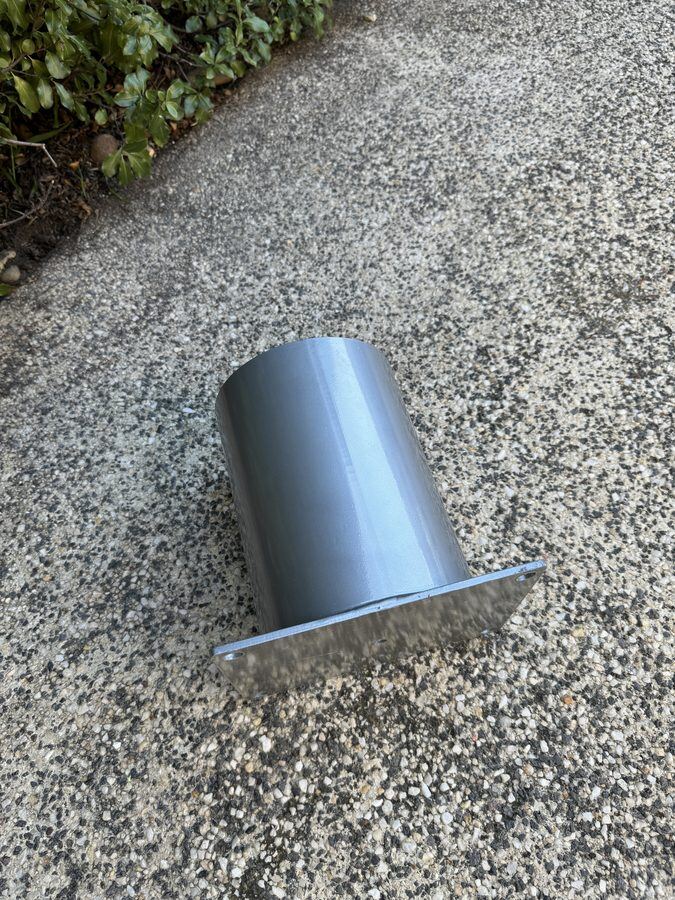

In-ground bollard sleeve

FAQs

Common questions

What is an in-ground bollard sleeve?

It's a steel housing that's permanently set into concrete. A removable bollard drops into the sleeve and locks in place; when the bollard is lifted out, the sleeve's cover plate sits flush with the ground so the area stays trafficable.

Which sleeve suits my bollard?

The 90mm sleeve (102mm internal diameter) suits our 90mm removable bollard, and the 140mm sleeve (152mm internal diameter) suits our 140mm removable bollard. Sizes aren't interchangeable between the two bollards.

Are bollard sleeves in stock?

Yes — in-ground sleeves are in stock now, in both 90mm and 140mm. Removable bollards themselves are currently on pre-order for the next shipment.

Can I buy a sleeve without a bollard?

Yes. Sleeves are sold as a separate line item, so you can order extra sleeves for future bollard positions, or order sleeves now while bollards are on pre-order and fit the bollards once they land.

How deep does the sleeve sit?

The 90mm sleeve is approximately 225mm deep and the 140mm sleeve approximately 200mm deep, each with a welded base plate. Allow for a gravel drainage layer beneath the base plate in the excavation or core hole.

Can sleeves go into existing concrete?

Yes. Core drill to suit the sleeve diameter, seat the sleeve, and backfill with non-shrink grout or concrete, trowelled flush. See our installation guide for exact hole sizes.
