Rubber car park wheel stops: 1650mm

Short answer: SW-WS1650 is a 1650 × 150 × 100mm reflective rubber car park wheel stop, about 12kg, from $50 ex GST ($55 inc GST). Pre-order for the next container. Fixings are not included. Not crash-rated.

Prices and stock as at October 2026. Updated 28 October 2026.

Reflective rubber wheel stops for car parks. A straightforward, low-cost way to mark bays and stop vehicles overrunning a kerb or wall.

Size
1650 × 150 × 100mm, approx. 12kg
Material
Black rubber, reflective yellow markings, moulded fixing holes
From, ex GST
$50 each ($55 inc GST). How many do I need?
Stock
Pre-order for the next container: factory production typically 15 to 20 days plus sea freight and customs; landing date on your quote

Wheel stops mark and position vehicles at parking speed. They are not a barrier against fast or deliberate impact.

1650mm rubber car park wheel stop with reflective yellow markings

Wheel stops

Stops a car at the head of the bay

A wheel stop (also called a wheel stopper or parking stop) is a moulded rubber block fixed to the ground at the front of a parking bay. It gives drivers a physical and visual cue to stop, keeping a car's front overhang clear of walls, fencing, landscaping and pedestrians beyond the bay.

Ours are 1650mm long, black with reflective yellow panels, in reflective rubber for outdoor car parks.

Where they're used

  • Retail and shopping centre car parks: mark bays and stop vehicles rolling into shopfronts, walls or pedestrian paths.
  • Office and commercial car parks: keep a car's front overhang clear of building perimeters, fencing and landscaping.
  • Residential and strata car parks: a clear stopping point in shared basement or open-air parking. See the car park safety checklist and our guide for strata owners corporations.
  • Warehouse and loading areas: designated stopping points for vans and light vehicles, away from racking or dock doors.
  • Accessible parking bays: a clear, reflective stopping reference where precise positioning matters.
  • EV charging bays: a stopping point that keeps a car's nose off the charger. See wheel stops for EV charging bays.
  • Home garages and driveways: see using a wheel stop at home.
  • New car park construction: fit out in bulk alongside line marking and signage as part of the base build.

Specification

Specifications & pricing

Tell us your quantity: bulk and pallet pricing is better.

1650mm rubber car park wheel stop with reflective yellow markings Pre-order

Rubber Wheel Stop 1650mm

SW-WS1650 · Car park wheel stop

from $50 per unit, ex GST & freight ($55 inc GST)

  • Length1650mm
  • Width150mm
  • Height100mm
  • Weightapprox. 12kg
  • MaterialBlack rubber with yellow reflective strips
  • ColourBlack with yellow reflective strips

Finish & construction

  • Moulded rubber: no steel body to rust.
  • Reflective yellow markings for low-light visibility.
  • Fixing holes moulded in for concrete or asphalt anchoring.

What is and isn't included

Included

  • The wheel stop with moulded fixing holes. 1650 × 150 × 100mm black rubber with reflective yellow markings, approx. 12kg.

Not included

  • Fixings. M10 or M12 anchors for concrete; 300mm spikes or screw anchors for asphalt or gravel. Buy them to suit your surface.
  • Installation and line marking. We supply only. See the wheel stop installation guide.
  • Freight and GST. Freight is quoted per job; GST is added at 10%. At about 12kg each, 50 wheel stops is roughly 600kg.

Starting prices as at October 2026, ex GST ($55 inc GST) and freight, and subject to change on the next container. Final pricing is confirmed on your written quote. Buying in volume? See trade and bulk supply. Based in Melbourne: bollards in Melbourne.

Quantities

How many wheel stops per bay?

One. A single 1650mm SafeWise wheel stop, centred across the bay, is the usual layout for a standard car bay, so 20 bays is 20 wheel stops.

One wheel stop per bay. Send us your bay count and postcode for a written quote.

Marking a walkway or door too? Add fixed bollards to the same quote.

Wheel stop totals by number of bays, from prices ex GST and inc GST
BaysWheel stopsFrom, ex GSTFrom, inc GST
1010$500$550
2020$1,000$1,100
5050$2,500$2,750

Totals use the $50 starting price per wheel stop ($55 inc GST), before freight and fixings. Pallet and container quantities price lower, so send your bay count and delivery postcode and we will quote.

Before you fix anything, check setbacks and fixings in our wheel stop installation guide. To review the rest of the car park while you are on site, use our car park safety checklist.

Get a quote for your bay count

Cost

What does a wheel stop cost per bay?

One wheel stop per bay, so the cost per bay starts at $50 ex GST ($55 inc GST) before freight and fixings.

SafeWise wheel stop cost for 1, 10 and 40 bays, from prices ex GST and inc GST
Bays (wheel stops)From, ex GSTFrom, inc GST
1$50$55
10$500$550
40$2,000$2,200
  • Starting prices. The table is the $50 starting price multiplied by the number of bays. Pricing is better at pallet quantity.
  • Freight is extra. It is quoted per job to your postcode.
  • Fixings and installation are extra. Neither is included.

For a worked 40-bay example, see our car park bollards guide. Comparing options? Read the rubber wheel stops buying guide.

Setback

Setback: how far from the wall or kerb

Commonly cited figures put a wheel stop at a maximum height of 100mm, set 620mm (front-in) or 900mm (rear-in) from a kerb up to 150mm, or 820mm and 1100mm from a higher kerb or wall; check the current edition of AS/NZS 2890.1 and your site drawings. See wheel stop setbacks from walls and kerbs (AS/NZS 2890.1) for how to set them out.

Installation

How they go in: the short version

We supply only, but here's the outline so you can scope the job. Full steps are in our wheel stop installation guide.

  1. Concrete surfaces

    Fix through the moulded holes with M10 or M12 concrete anchors.

  2. Asphalt or gravel surfaces

    Use 300mm asphalt spikes or screw anchors through the same fixing holes instead of concrete anchors.

Always locate underground services before fixing. Installation is the responsibility of the purchaser or their contractor. SafeWise supplies product only.

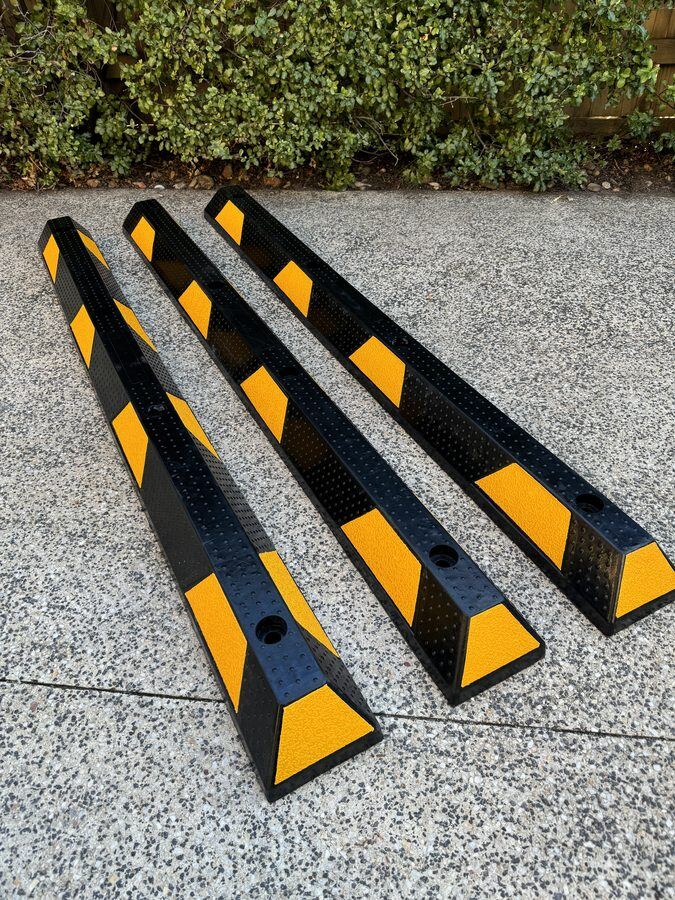

Three 1650mm rubber wheel stops, black with reflective yellow panels and moulded fixing holes, laid on concrete

FAQs

Common questions

What size are SafeWise wheel stops?

1650mm long, 150mm wide and 100mm high, weighing approximately 12kg. That length suits a standard passenger car parking bay. We currently list one wheel stop length, 1650mm.

Are the wheel stops reflective?

Yes. They're moulded from rubber with reflective yellow markings for visibility in low light.

How are wheel stops fixed down?

On concrete, fix through the moulded holes with M10 or M12 anchors. On asphalt or gravel, use 300mm asphalt spikes or screw anchors instead of concrete anchors.

How far from the kerb or wall should a wheel stop be?

Commonly cited figures put a wheel stop at a maximum height of 100mm, set 620mm (front-in) or 900mm (rear-in) from a kerb up to 150mm, or 820mm and 1100mm from a higher kerb or wall. Check the current edition of AS/NZS 2890.1 and your site drawings. Our wheel stop installation guide covers the setbacks.

How much is a wheel stop in Australia?

SafeWise 1650mm rubber wheel stops (SW-WS1650) start from $50 ex GST ($55 inc GST) each, as at October 2026. Freight is quoted per job, and fixings and installation are extra. Pricing is better at pallet quantity.

Are wheel stops in stock?

Not currently. The 1650mm wheel stop (SW-WS1650) is on pre-order for our next container: factory production typically takes 15 to 20 days, plus sea freight and customs clearance. Send your bay count and we will put the expected landing date on your written quote.

Can I order wheel stops in bulk for a car park project?

Yes. Car park projects are exactly what our pallet and container pricing is built for. Tell us the quantity and delivery postcode and we'll quote a landed price and lead time.

How do I pay for a wheel stop order?

Your written quote lists the wheel stops, freight and any deposit or payment terms that apply. Nothing is committed until you accept it, and the quote carries the expected landing date.

How many wheel stops do I need?

Plan on one wheel stop per bay. Count the bays that need a stop and multiply. At the $50 starting price ex GST, 10 bays is $500 ($550 inc GST), 20 bays is $1,000 ($1,100 inc GST) and 50 bays is $2,500 ($2,750 inc GST), before freight and fixings. Pricing is better at pallet or container quantities, so send us your bay count and delivery postcode for a written quote.

Do I need two wheel stops per bay?

No. One per bay is the usual layout for a 1650mm wheel stop, centred across the bay. Send your bay count and postcode and we will quote the stops and freight in writing.

Are fixings included with the wheel stops?

No. The wheel stops have moulded fixing holes but are supplied without anchors. On concrete, fix through the moulded holes with M10 or M12 anchors. On asphalt or gravel, use 300mm asphalt spikes or screw anchors instead. Buy the fixings to suit your surface, and locate underground services before you drill or drive anything.

Pricing wheel stops?

Send the number of bays and your postcode. We quote the wheel stops and freight in writing, with the expected landing date.

Request a quote
