Surface-mount safety bollards: 90mm and 140mm

Fixed, surface-mount steel safety bollards that mark a permanent line and keep cars at parking speed off it. No in-ground socket, no lock: a bolted-down post that doesn't come out.

Safety and delineation bollards: not impact-tested or certified to hostile-vehicle standards such as PAS 68 or IWA 14.

Sizes
90mm (900mm tall), 140mm (1300mm tall)
Fixing
Welded base plate; anchors not included
From, ex GST
$80 (90mm) inc GST $88, $110 (140mm) inc GST $121
Stock
Pre-order for the next container: factory production typically 15 to 20 days plus sea freight and customs; landing date on your quote
90mm fixed surface-mount safety bollard with bolted base plate

Short answer: SW-FB90 (900mm tall, from $80 ex GST, $88 inc) and SW-FB140 (1300mm tall, from $110 ex GST, $121 inc) are fixed, bolt-down steel safety bollards with a base plate, powder-coated safety yellow with a red reflective band. Pre-order for the next container. Not crash-rated.

Prices and stock as at October 2026. Updated 28 October 2026.

How it works

Fixed delineation, no moving parts

A fixed bollard bolts straight to a concrete slab through a welded base plate. There's no in-ground socket, no key, nothing to lift out. It's the simplest option where the location never needs to open for vehicles.

  • Base plate: welded to the foot of the bollard, so it sits on the slab surface with nothing to dig.
  • Anchors: fixed down through the plate with M10 concrete anchors, which you buy to suit your slab.
  • Two sizes: carbon steel with a 3mm wall, powder-coated safety yellow with a red reflective band. The 90mm and 140mm differ in diameter, height and base plate size, and the 140mm is the taller, heavier bollard, for locations that need a more visible marker.

Sizing

Choosing a fixed 90mm or 140mm bollard

Fixed bollards don't need an in-ground socket at all, so the choice is about how much visual presence the location needs.

  • 90mm (900mm tall): general-purpose delineation for shopfronts, building corners and low-speed pedestrian areas.
  • 140mm (1300mm tall): a taller, heavier bollard for busier vehicle areas and loading docks, and a more visible marker. Still a low-speed delineation bollard. See roller door and loading dock bollards.
  • Fixed vs removable: if the location ever needs to open fully for vehicles, a removable bollard with its own in-ground socket is worth considering instead.

For a fuller comparison of bollard sizing, see our 90mm vs 140mm bollard guide and the bollard height guide, 900mm vs 1300mm. Unfamiliar term? See the bollard terms glossary.

Specifications at a glance

Fixed, bolt-down bollards. Not crash-rated.

Specifications of the SW-FB90 and SW-FB140 fixed surface-mount bollards side by side
SpecificationSW-FB90SW-FB140
SKUSW-FB90SW-FB140
DiameterØ89mmØ140mm
Height900mm1300mm
Wall3mm3mm
Base plateØ225 × 8mmØ250 × 8mm
Weightapprox. 9.5kgapprox. 17.5kg
AnchorsM10 concrete anchors, typically 100–150mm long. Not included.
From, ex GST (inc GST)$80 ($88)$110 ($121)
StockPre-orderPre-order

Both sizes

Fixed bollard pricing & details

Tell us your quantity: bulk and pallet pricing is better.

90mm fixed surface-mount safety bollard with bolted base plate Pre-order

Fixed Bollard 90mm

Surface-mount · SW-FB90

from $80 per unit, ex GST & freight · inc GST $88

  • Diameter89mm
  • Height900mm
  • Wall thickness3mm
  • Base plateØ225 × 8mm
  • Weightapprox. 9.5kg

Need 20 or more, or a mixed order? Ask for a volume price.

Enquire about Fixed Bollard 90mm
140mm fixed surface-mount safety bollard Pre-order

Fixed Bollard 140mm

Surface-mount · SW-FB140

from $110 per unit, ex GST & freight · inc GST $121

  • Diameter140mm
  • Height1300mm
  • Wall thickness3mm
  • Base plateØ250 × 8mm
  • Weightapprox. 17.5kg

Need 20 or more, or a mixed order? Ask for a volume price.

Enquire about Fixed Bollard 140mm

Looking for an accessible parking bay bollard? See accessible parking bay bollards: height and band.

Starting prices as at October 2026, ex GST and freight (inc GST shown for reference), and subject to change on the next container. Final pricing is confirmed on your written quote. Buying in volume? See trade and bulk supply. Based in Melbourne: bollards in Melbourne.

In the price

  • The bollard. 3mm-wall carbon steel, 900mm (90mm) or 1300mm (140mm) tall, powder-coated safety yellow with a red reflective band.
  • A welded base plate (Ø225 × 8mm for the 90mm, Ø250 × 8mm for the 140mm) for surface mounting.
  • No socket or lock to pay for. That is why a fixed bollard starts $40 (90mm) or $30 (140mm) below its removable equivalent.
  • Installation guidance with every order; full-size drawings on request.

Not in the price

  • Anchors. M10 concrete anchors, typically 100 to 150mm long, suit most slabs. Buy to suit yours.
  • Installation. We supply only. Thin or older slabs need an installer to assess them.
  • Freight and GST. Freight is quoted per job; GST is added at 10%.

Comparing quotes? Ask every supplier for the wall thickness, what the base plate or socket is, and whether the finish is powder coat. See the bollard price guide.

Finish & construction

  • Carbon steel with a 3mm wall.
  • Powder-coated safety yellow with a red reflective band for low-light visibility.
  • Welded base plate for surface mounting.

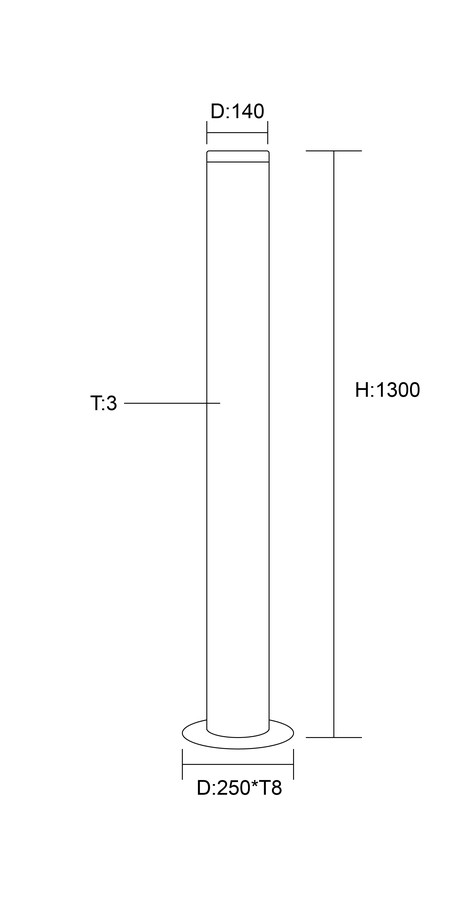

Technical drawings

Select a drawing to open it full size. Dimensioned drawings are on this page and in each PDF spec sheet. Email info@safewiseaustralia.com for anything else.

Anchors are not included: M10 concrete anchors, typically 100 to 150mm long, suit most slabs. See the install guide

Where they're used

Common applications for fixed bollards

Shopfronts & storefronts

Mark glass frontages, entries and outdoor seating and keep cars at parking speed off them, at a fixed point that never needs to move. Not a ram-raid barrier.

Building perimeters

Mark structural columns, plant rooms, meter boxes and loading dock corners and keep cars at parking speed off them.

Car parks

Mark permanent pedestrian lines, set equipment apart, or keep cars at parking speed from overrunning a bay or kerb line.

Warehouses

Mark a permanent line around dock doors and walkways and deter low-speed traffic from crossing it. Not a substitute for racking guards.

Public infrastructure

Mark signage, bus shelters, hydrants and street furniture so cars at parking speed stay clear, in locations that don't need to open for vehicles.

Plant, meters & services

Mark meter boxes, switchboards and service equipment and keep cars at parking speed off them, with a permanent surface-mount fixing.

Accessible parking shared areas

AS 2890.6 (2022 edition, which replaced AS/NZS 2890.6:2009; check the edition your certifier uses) is commonly summarised as expecting a bollard in the shared area beside an accessible parking space so it can't be parked in, with industry guides citing at least 1300mm installed height and a reflective band. Our 140mm fixed bollard stands 1300mm tall, which matches the height commonly cited. Check the band position and set-out against the current edition of the standard and your drawings. Our bollard spacing guide covers clearances, and accessible parking bay bollards: height and band goes further.

Installation

How they go in: the short version

We supply only, but here's the outline so you can scope the job. Detailed guidance is supplied with every order. If the surface is not a concrete slab, read installing bollards on asphalt, pavers and soil and how deep to set a bollard first.

  1. Mark & drill

    Position the bollard, mark the base plate holes and drill into the slab.

  2. Anchor

    Fix with M10 concrete anchors, typically 100–150mm long depending on slab thickness. Check for services with a wall or slab scanner before drilling.

Always locate underground services before drilling or anchoring. Installation is the responsibility of the purchaser or their contractor. SafeWise supplies product only.

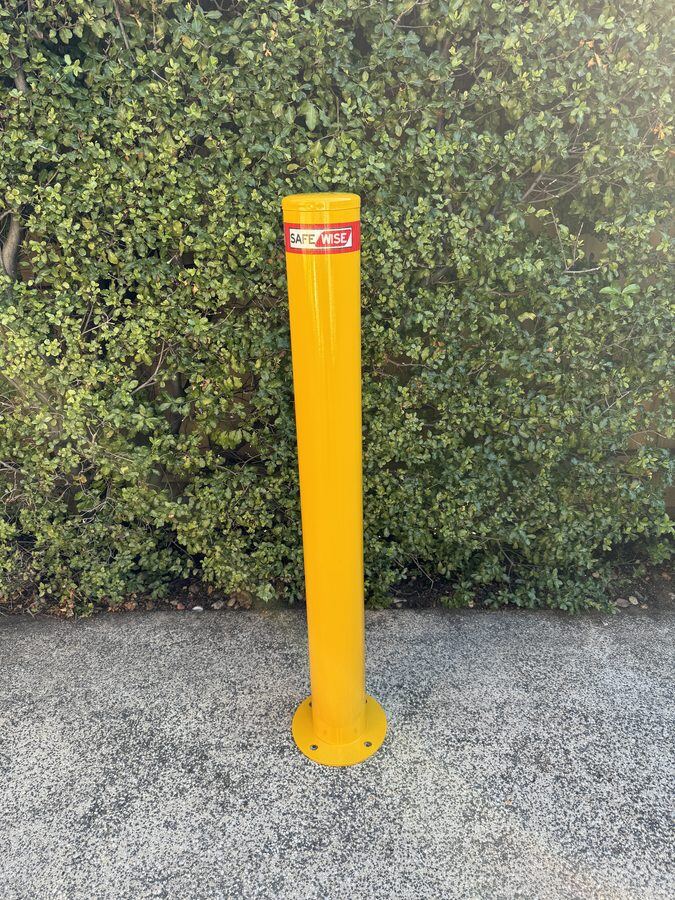

Fixed safety bollard installed on concrete

FAQs

Common questions

What's the difference between the 90mm and 140mm fixed bollard?

The 90mm fixed bollard is 89mm diameter and 900mm tall on a 225mm base plate. The 140mm is larger and taller at 1300mm, with a 250mm base plate, and is a more visible marker for busier areas. Both are 3mm wall carbon steel.

Can fixed bollards be removed later?

Not without unbolting them. Fixed bollards are surface mounted with concrete anchors through the base plate, so they're a permanent installation rather than a lift-out one. If you need to open the location for vehicles from time to time, a removable bollard with its own in-ground socket is the better fit.

How are fixed bollards installed?

Mark and drill the base plate holes, then fix to the slab with M10 concrete anchors, typically 100mm to 150mm long depending on slab thickness. Always check for underground services with a scanner before drilling.

Do fixed bollards need a minimum concrete thickness?

Anchor length and slab thickness go hand in hand. Thin or older slabs may need shorter anchors or extra checks. We recommend a qualified installer assess the specific slab before fixing, particularly for the taller 140mm bollard.

Are fixed bollards in stock?

Not currently. Fixed bollards (SW-FB90 and SW-FB140) are on pre-order for our next container: factory production typically takes 15 to 20 days, plus sea freight and customs clearance. Send your quantity and we will put the expected landing date on your written quote.

Can I get fixed bollards in bulk?

Yes. Pallet and container quantities are what our pricing is built around, for builders, fit-out crews and resellers. Tell us the quantity and delivery postcode and we'll quote a landed price.

How do I pay for fixed bollards?

Any deposit or payment terms for a fixed bollard order are stated on your written quote. Nothing is committed until you accept that quote.

Do the bollards need to be filled with concrete?

No. SafeWise bollards are supplied hollow and are designed to be installed as they come. Some installers fill a bollard with concrete for extra mass; it doesn't change what the product is, a safety and delineation bollard, not a crash-rated barrier. On a surface-mount bollard the anchors and the slab govern how much it will resist, so filling adds little. If you do fill one, let it cure before use.

SafeWise bollards are safety and delineation bollards: they mark boundaries, deter at parking speed and keep cars off an area. They are not ram-raid or forklift barriers, and they are not crash-rated, impact-tested or certified to PAS 68 or IWA 14. If you need a rated barrier, we will tell you.

Pricing fixed bollards?

Send sizes, quantities and your postcode. We quote the bollards and freight in writing, with the expected landing date.

Request a quote
